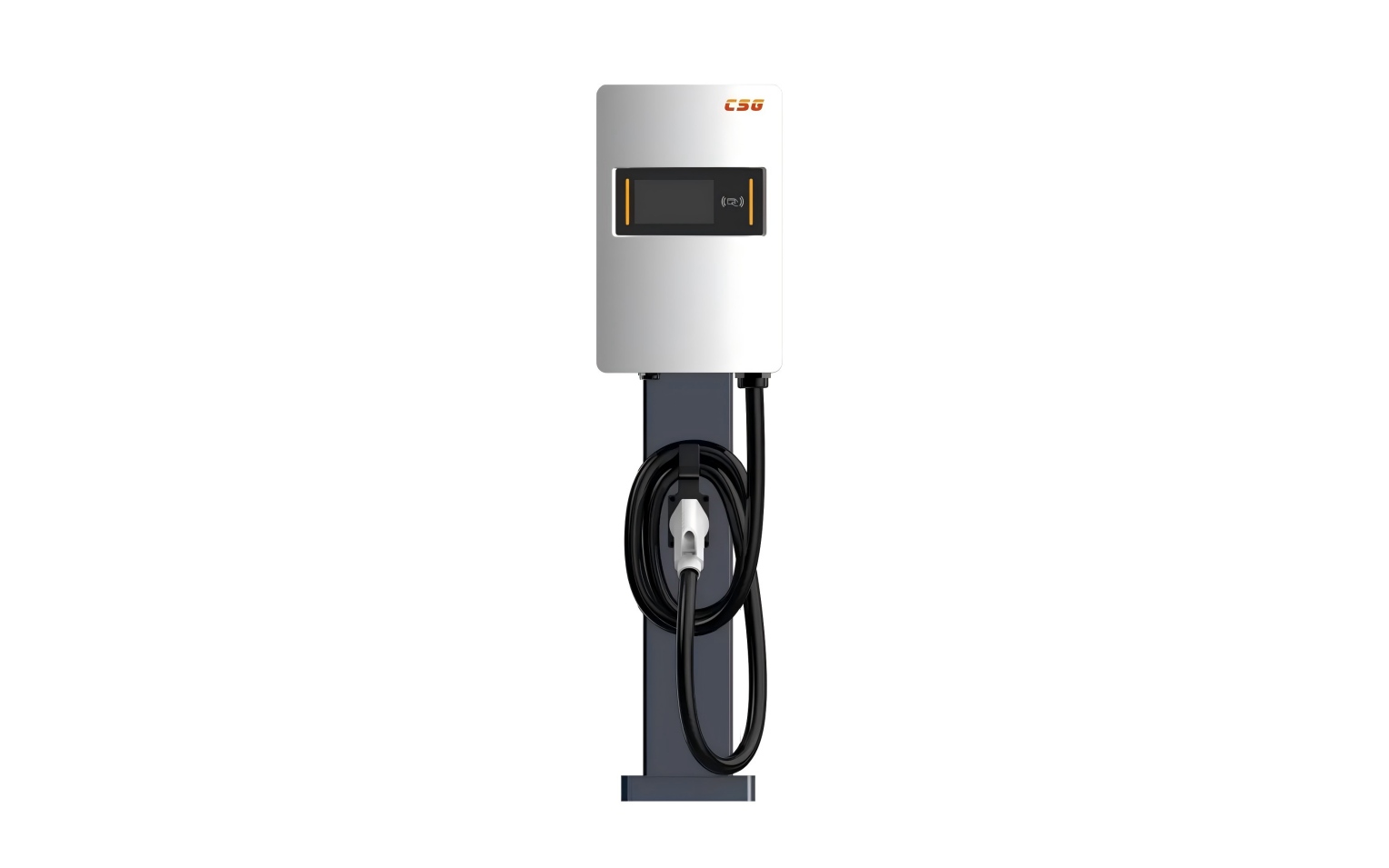

7kW AC Charger

The 7kW AC charger targets the blooming new energy vehicle market. It can be equipped with an LCD display upon request, supports both online operation and offline charging modes, and provides safe, reliable, stable, and efficient charging services while saving installation space.

Specifications

Specifications Product Image
AC input voltage: 220V ±20%
AC input frequency: 45Hz~55Hz
Atmospheric pressure: 79–106 kPa
Operating temperature: -30°C to +55°C
Connection method: 40A circuit breaker access
Cable length: 5m (customizable)
Altitude: 2000m
Relative humidity: 5%–95%
Output power: 7kW
Output interface: single gun
Output voltage: 220V ±20%
Output current: 32A per gun
Communication interface: 4G / Bluetooth / RS485 / Ethernet (optional) Weight: <5kg (excluding stand)
Protection rating: IP55
Input cable length: terminals reserved
Multiple communication methods: 4G / Bluetooth / RS485 / Ethernet (optional) Installation method: wall-mounted or floor-mounted, dual-use for easy installation
Operation simplicity: optional 4.3-inch color touchscreen

Features

Multiple communication options: 4G, Bluetooth, RS485, and Ethernet (all optional).
Flexible installation: wall-mounted or floor-mounted, dual-use for easy installation.
Simple operation: optional 4.3-inch color touchscreen.
Smart control: supports mobile app, WeChat mini-program, and RFID card charging.
Space-saving design: metering module integrated onto the control board.
