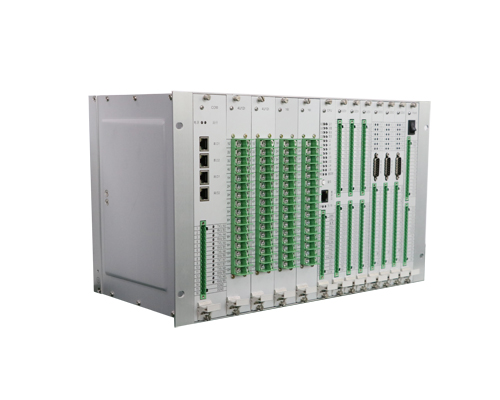

Centralized DTU

Centralized Distributed Terminal Unit is a new-generation, microprocessor-based station terminal unit integrating telemetry, status indication, remote control, energy metering, protection, and communication functions. Designed with a compact integrated structure, it is suitable for multi-feeder centralized monitoring applications in distribution rooms, RMUs, and switching stations. When combined with communication systems, it forms various ring and radial distribution automation networks, enabling distribution automation functions such as real-time monitoring of distribution line status, fault detection, fault isolation, and restoration of power to non-faulted sections.

Specifications

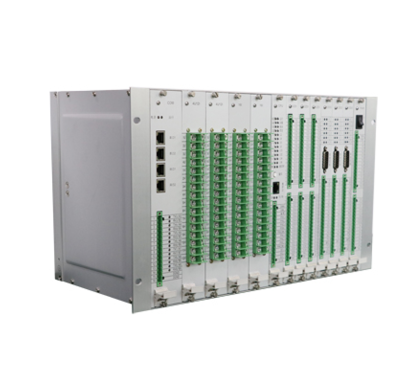

Specifications Product Image
Rated Voltage:: AC100V / AC220V, 50Hz
Rated Current: 1A / 5A, 50Hz
Operating Temperature: -40°C to 85°C
EMC Level:: Class 4
Protection Operating Time: ≤40 milliseconds
Status Input (SI) Resolution: ≤2 milliseconds
Timekeeping Accuracy Error: ≤2 seconds/day
AC Sampling Rate: 6.4ksps / 12.8ksps
AC Voltage Measurement Accuracy: Class 0.5
AC Current Measurement Accuracy: Class 0.5
Active & Reactive Power Sampling Accuracy: Class 1.0
GPS Time Synchronization Accuracy: ≤1 microsecond
Voltage Circuit Power Consumption: ≤0.5VA
Current Circuit Power Consumption: ≤0.75VA

Features

Centralized integrated structure design, easy installation
Easy maintenance and safe
Full industrial-grade design, long-term stable operation under complex working conditions
Multiple functions, flexible configuration and application
Standardized interface design, strong compatibility and scalability
