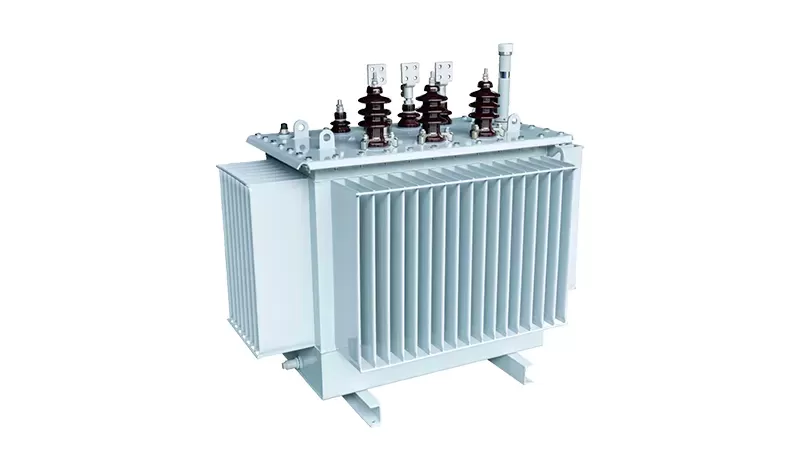

Oil-Immersed Distribution Transformer_CSG Smart Science &Technology Co., Ltd.

Features

Main tank construction: The core and windings are designed to avoid the need for lifting the core and coil assembly for inspection. The sealing gaskets are made of high-quality acrylic rubber which effectively resist UV and therma

Tank finish: The transformer features a corrugated tank manufactured on an automated production line. The surface undergoes a multi-stage pretreatment process (degreasing, pickling, phosphating) followed by electrophoretic coating

Core: The core is constructed using cold-rolled, grain-oriented silicon steel on a fully automated line from Switzerland. A stepped-lap joint design is utilized to minimize core losses.

Windings: The high-voltage windings are wound with high-strength enameled or paper-insulated copper wire. The low-voltage windings are wound with high-strength enameled wire, paper-insulated wire, or copper strip. This design ensu

Compliance: Manufactured in accordance with applicable standards, including IEEE Std C57.12.00 and C57.12.90.

Applications: Suitable for power plants, substations, industrial facilities, commercial buildings, and other infrastructure applications.
